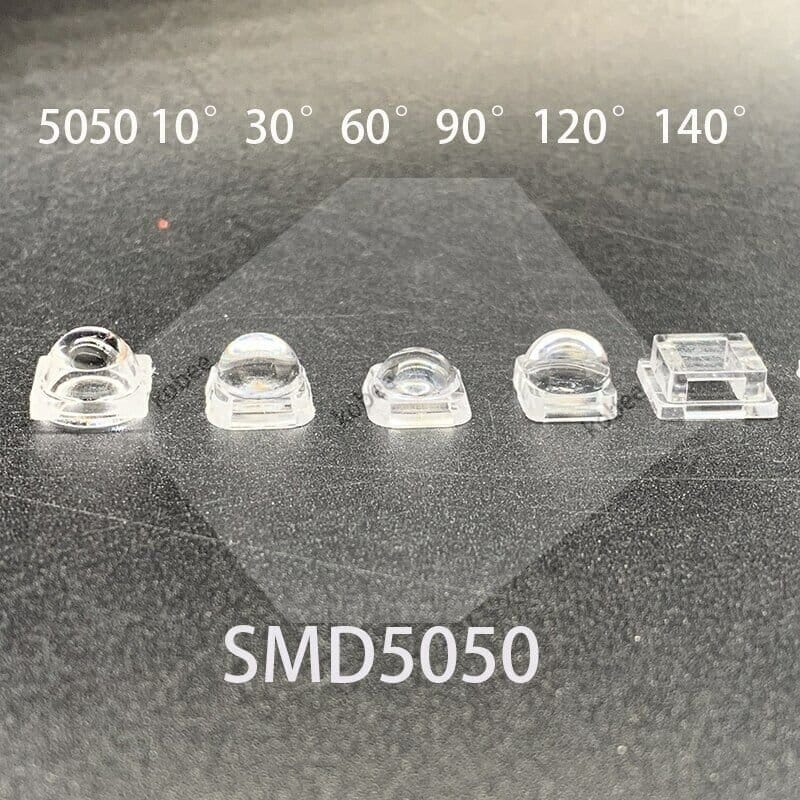

Introduction to 980nm SMD LED Lenses
The 980nm SMD (Surface-Mounted Device) LED lens is a critical component in various infrared applications, including medical imaging, night vision, and optical communication. Understanding the optimal signal for these lenses is essential to maximize performance and efficiency. This guide delves into the technical aspects of 980nm SMD LED lenses, exploring the best signal choices and how they impact overall functionality.
Understanding the Basics of 980nm Wavelength
The 980nm wavelength falls within the near-infrared (NIR) spectrum, making it suitable for applications that require deep tissue penetration or low-light visibility. This wavelength is particularly effective in medical diagnostics and therapeutic procedures, as well as in surveillance systems where visibility in darkness is crucial. The choice of signal directly affects the performance of the LED at this wavelength, influencing factors such as intensity, coherence, and modulation capabilities.
Importance of Signal Selection in LED Performance
Selecting the appropriate signal for a 980nm SMD LED lens is vital for achieving desired outcomes in specific applications. The signal determines how the LED emits light, including aspects like pulse width, frequency, and amplitude. For instance, in optical communication, a modulated signal allows for data transmission, while in medical applications, continuous-wave signals may be preferred for consistent illumination. Understanding these nuances ensures that the LED operates efficiently within its intended use-case.
Technical Specifications of 980nm SMD LEDs
When evaluating the optimal signal for a 980nm SMD LED lens, it’s essential to consider the technical specifications of the LED itself. Key parameters include forward voltage, radiant power, beam angle, and peak wavelength. For example, the WL-5P5050EP120IR-980 model from Lumixtar offers a forward voltage range of 2.5V to 3.2V and a radiant power between 200mW to 300mW at 700mA current. These specifications influence how the LED responds to different signals, affecting its brightness and efficiency. lightkeyled.en.made-in-china.com+2lumixtar.com+2lumixtar.com+2
Signal Modulation Techniques for 980nm LEDs
Signal modulation is a technique used to encode information onto the LED’s light output, which is particularly useful in communication systems. Common modulation methods include Pulse Width Modulation (PWM), Frequency Modulation (FM), and Amplitude Modulation (AM). Each technique has its advantages and is chosen based on the application’s requirements. For instance, PWM is widely used for controlling LED brightness, while FM and AM are more prevalent in data transmission scenarios.
Applications of 980nm SMD LED Lenses
The versatility of 980nm SMD LED lenses allows them to be used in various fields:
-
Medical Imaging: Utilized in procedures like photodynamic therapy and diagnostic imaging due to their deep tissue penetration capabilities.
-
Night Vision: Employed in surveillance and security systems to provide visibility in low-light conditions.
-
Optical Communication: Used in fiber-optic communication systems for data transmission over long distances.
-
Industrial Automation: Applied in machine vision systems for quality control and inspection processes.lumixtar.com+1lumixtar.com+1
Each application may require a different signal type to optimize the LED’s performance for the specific task.mrleds.en.made-in-china.com+2light-catcher.com.cn+2Asahi Optics+2
Factors Influencing Signal Choice
Several factors must be considered when selecting the optimal signal for a 980nm SMD LED lens:
-
Application Requirements: The intended use dictates the necessary signal characteristics, such as continuous or pulsed operation.
-
LED Specifications: Understanding the LED’s electrical and optical parameters ensures compatibility with the chosen signal.
-
Thermal Management: Signal type can affect heat generation; thus, thermal considerations are crucial to maintain LED longevity.
-
Power Consumption: Efficient signal selection can reduce energy usage, which is vital in battery-powered or energy-sensitive applications.
Conclusion
Choosing the optimal signal for a 980nm SMD LED lens is a multifaceted decision that impacts the efficiency and effectiveness of the application. By understanding the technical specifications, modulation techniques, and application-specific requirements, one can make informed choices that enhance performance. As technology advances, the integration of intelligent signal control will further optimize the use of 980nm SMD LED lenses across various industries.
